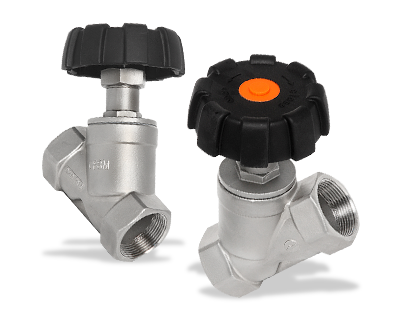

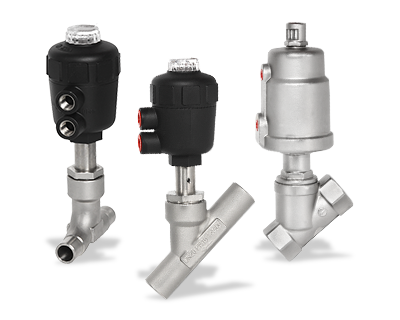

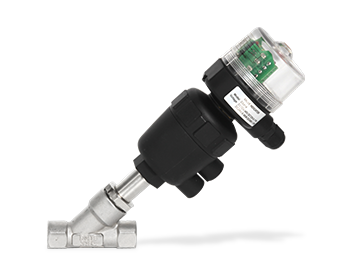

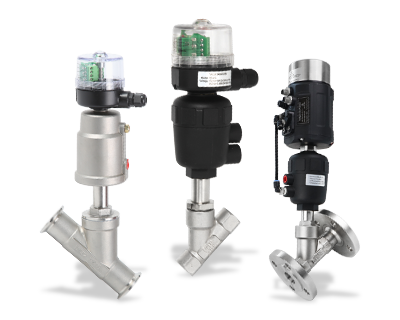

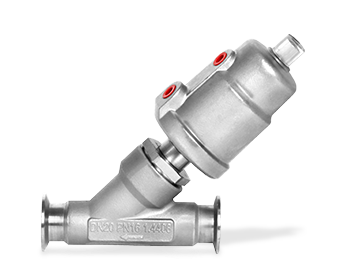

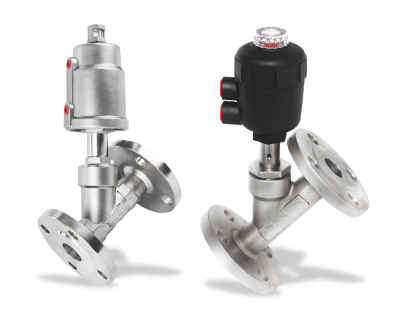

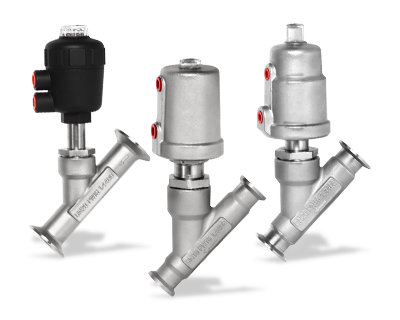

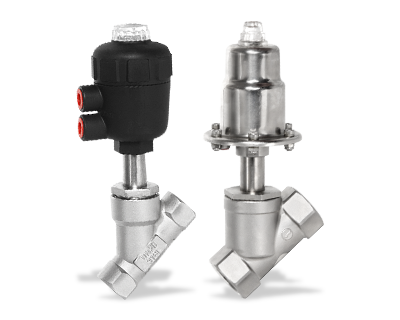

The angle seat valve is a guided angle seat valve operated by a single-acting pneumatic actuator with spring safety protection. The angle seat valve is widely used for short-term frequent start-up. Maintaining the flow rate can save space. It has the characteristics of sensitive response and accurate action. With the solenoid valve, it can accurately control the flow of gas and liquid with pneumatic control. It can achieve accurate temperature control, dripping liquid and other requirements.

 ◆ Nominal diameter: DN10-DN100

 ◆ Valve body material: SS304, SS304L, SS316, SS316L

 ◆ Connection method: thread, welding, quick installation, flange

 ◆ Control mode: switch type, adjustment type, manual control, pneumatic control, electric control

The angle seat valve is a guide angle seat valve operated by a single-acting pneumatic actuator with spring safety protection. Angle seat valve is widely used for frequent start-up in a short period of time. Maintaining the flow rate can save space and has the characteristics of sensitive response and accurate action. When used with solenoid valve, pneumatic control can accurately control the flow of gas and liquid. It can achieve accurate temperature control, drip liquid and other requirements.

 ◆ Nominal diameter: DN10-DN100

 ◆ Valve body material: SS304, SS304L, SS316, SS316L

 ◆ Connection method: thread, welding, quick installation, flange

 ◆ Control mode: switch type, adjustment type, manual control, pneumatic control, electric control

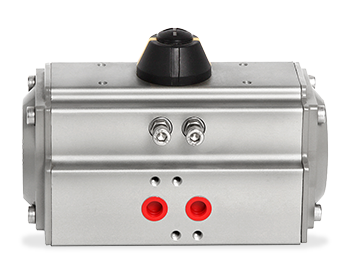

A pneumatic actuator is an actuator that drives the opening and closing or regulates the valve with gas pressure. It is also known as a pneumatic actuator or a pneumatic device, but it is commonly called a pneumatic head. Pneumatic actuators are sometimes equipped with certain auxiliary devices. Commonly used are valve positioners, limit switches, solenoid valves and manual mechanisms.

 ◆ Specification and Model: AT32-AT400

 ◆ Shell material: die-cast aluminum

 ◆ Control mode: double action, single action

 ◆ Air source: 0.3-0.8Mpa

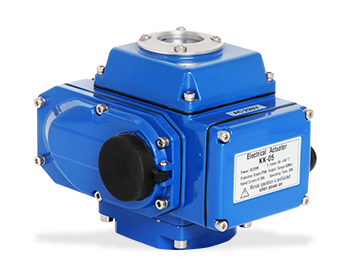

Electric actuators generally refer to electric actuators. The most widely defined definition of an actuator is: a drive device that can provide linear or rotary motion, which uses a certain driving energy and works under the action of a certain control signal. The actuator uses liquid, gas, electricity or other energy and converts it into a drive through a motor, cylinder or other device.

 ◆ Specification Model: 20NM-2000NM

 ◆ Shell material: die-cast aluminum

 ◆ Control mode: angle stroke, straight stroke, multi-turn

 ◆ Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC, 380VAC, 415VAC

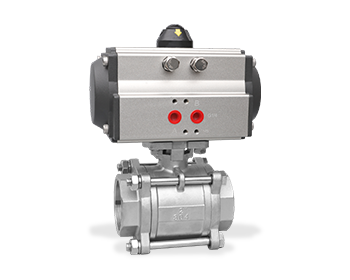

A pneumatic valve is a valve that uses compressed air to drive multiple combinations of pneumatic pistons in the actuator. The products are widely used in the pipelines of various petroleum and chemical raw materials and products, such as the flow control and cut-off of crude oil, refined oil, chemical liquids, etc.

 ◆ Nominal diameter

 Ball valve: DN15-DN200

 Gate valve/slut-off valve: DN15-DN600

 Butterfly valve: DN50-DN600

 ◆ Valve body material: stainless steel, carbon steel, cast steel, cast iron, UPVC, PVDF

 ◆ Control mode: switch type, adjustment type, through-through, three-way, multi-channel

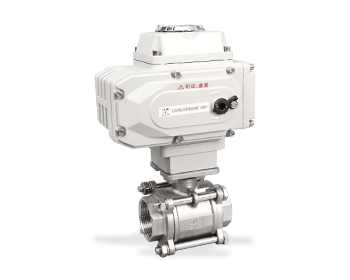

The electric valve is a device that controls the valve switch through the electric actuator. It can not only realize the switch function, but also the adjustable electric valve can adjust the valve position. The products are widely used in the pipelines of various petroleum and chemical raw materials and products, such as the flow control and cut-off of crude oil, refined oil, chemical liquids, etc.

 ◆ Nominal diameter

 Ball valve: DN15-DN200

 Butterfly valve: DN50-DN600

 ◆ Valve body material: stainless steel, carbon steel, cast steel, cast iron, UPVC, PVDF

 ◆ Control mode: switch type, adjustment type, through-through, three-way, multi-channel

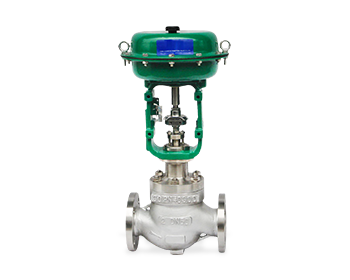

The regulating valve generally refers to the control valve. The control valve is composed of two main components: the valve body assembly and the actuator assembly (or actuator system), which is divided into four series: single-seat series control valve, double-seat series control valve, sleeve series control valve and self-powered series control valve. Variations of four types of valves can lead to many different applicable structures, each of which has its own special applications, characteristics, advantages and disadvantages. Regulating valves can be widely used in precise control of different temperatures, different pressures, different flow rates and other occasions.

 ◆ Nominal diameter: DN20-DN200

 ◆ Valve body material: stainless steel, cast steel, cast iron, forged steel

 ◆ Control mode: switch type, adjustable type, pneumatic control, electric control, straight-through, three-way, multi-channel

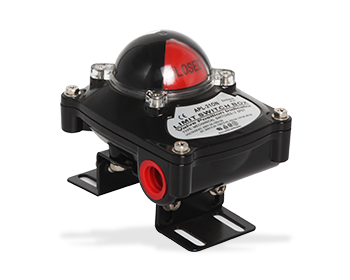

A pneumatic valve is an actuator that uses compressed air to drive and operate the valve. There are many kinds of accessories for pneumatic valves, and different accessories can achieve different control methods. Users can configure different accessories according to the different work of the valve.

 ◆ Locator: YT-1000R, YT-1000L, YT-1200R, YT-1200L

 ◆ Limit switch: APL-210, APL-310, APL-410, APL-510, DS500

 ◆ Manual exercise mechanism

 ◆ Solenoid valve: 24VDC, 220VAC, 110VAC

 ◆ Install bracket connection shaft: can be adapted to a variety of valves such as ball valves and butterfly valves

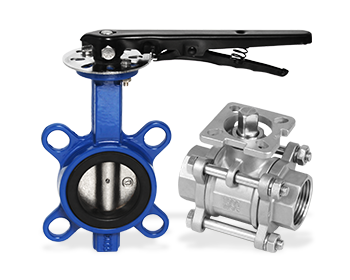

Industrial valve is a control component in the pipeline fluid conveying system. It is used to change the cross-section of the channel and the direction of medium flow. It has the functions of guiding, shutting off, regulating, throttling, stopping back, diverting or overflowing and depressurizing. Valves used for fluid control, the nominal diameter of the valve is from a very small instrument valve to an industrial pipeline valve with a diameter of 10m.

 ◆ Nominal diameter

 Gate valve/stop valve/check valve/ball valve: DN15-DN600

 Butterfly valve: DN50-DN1600

 ◆ Valve body material: stainless steel, cast steel, carbon steel, forged steel

 ◆ Manufacturing standard: GB/ANSI/JIS

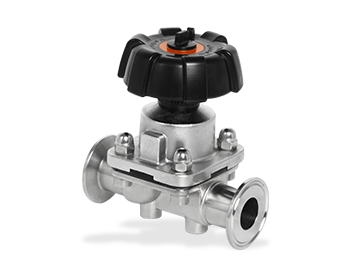

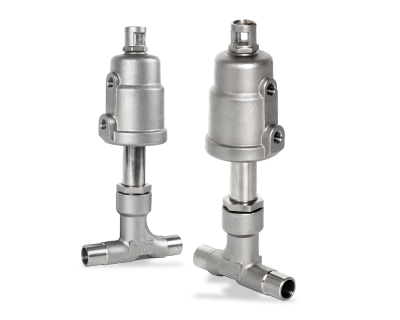

It is specially designed for food, pharmaceutical and other industries, strictly controls cleanliness standards, and seamlessly meets the needs of sanitary production. It meets high hygiene requirements such as food and medicine, and is fully sealed to prevent pollution. It is easy to clean and resist corrosion.

 ◆ Nominal diameter: DN10-DN200

 ◆ Valve body material: SS304, SS304L, SS316, SS316L

 ◆ Connection method: thread, welding, quick installation, flange

 ◆ Control mode: switch type, adjustment type, manual control, pneumatic control, electric control
